Thermo switch is for the cooling system of a gasoline engine. The sensor measures the temperature of the cooling system and notifies the engine when the temperature is too high. From these measurements the alarm will alert the driver to take notice of the cooling system. Measuring the engine cooling water temperature is the principle purpose of the water temperature sensor. By using a negative temperature coefficient (NTC) the thermistor decreases with increasing temperature, and the change in instrumentation in the series circuit current results in the magnetic field deflection of the meter coil. Major components: NTC thermistor, magnetic switch, output terminals.
-
1
2 M16×1.5
3 22
4 93℃-ON
-
1
2 93920-34000
3 M16×1.5
4 19
5 HYUNDAI
6 100℃-ON
-
1
2 25360-34000
3 M16×1.5
4 19
5 HYUNDAI
6 90℃-ON
-
1
2 25360-37100
3 M16×1.5
4 19
5 HYUNDAI
6 85℃-ON
-

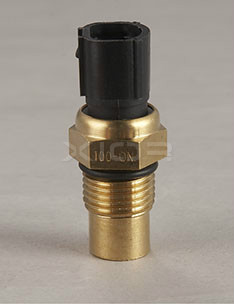

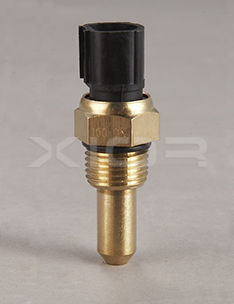

1 M16×1.5
2 M16×1.5
3 19
4 100-ON
5 HYUNDAI
6 93920-34000
7
-

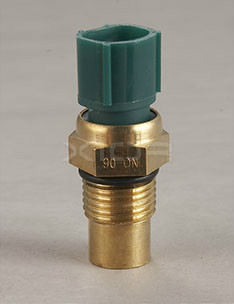

1 M16×1.5
2 M16×1.5
3 19
4 90-ON
5 HYUNDAI
6 25360-34000
7
-
1 M16×1.5
2 M16×1.5
3 19
4 85-ON
5 HYUNDAI
6 25360-37100
7
-
1 M16×1.5
2 M16×1.5
3 22
4 95-ON
5 NISSAN
6 21595-50A00
7
-
1 M16×1.5
2 M16×1.5
3 19
4 85-ON
5 MITSUBISHI
6 MB-356704
7
-

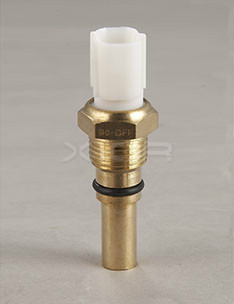

1 M16×1.5
2 M16×1.5
3 19
4 90-OFF
5 HOLDEN
6 8942833010
7
-
1 M16×1.5
2 M16×1.5
3 19
4 90-OFF
5
6 89428-15020
7
-
1 M16×1.5
2 M16×1.5
3 17
4 90-OFF
5 GM
6 94840250
7
-
1 R3/8
2 R3/8
3 22
4 70-OFF
5 ISUZU
6 8-94336-668-0
7
-
1 M16×1.5
2 M16×1.5
3 21
4 91-ON
5 HYUNDAI
6 25360-33010
7
-
1 M16×1.5
2 M16×1.5
3 22
4 96-ON
5 SUZUKI
6 17680-86011
7
